Description

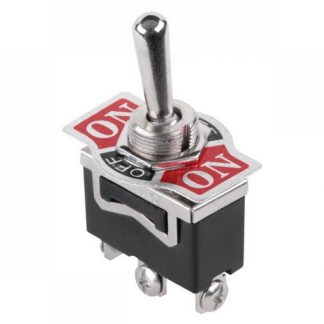

High quality SPDT toggle switch. Ideal for general purpose use.
Switch Action : Toggle
Switch Type : SPDT (ON-ON)
Maximum Rating : 3A @ 125VAC, 1.5A @ 250VAC
Maximum Contact Resistance : 20mOhm
Min Insulation Resistance : 1000MOhm @ 500V DC
Dialectric Strength : 1000VAC for 1 min
Operating Temperature Range : -25degC to +85degC
Mounting Hole Size : 5mm
Knob Height : 15.4mm
Body Dimensions : 8.2mm (L), 5.2mm (W), 7.1mm (H)
